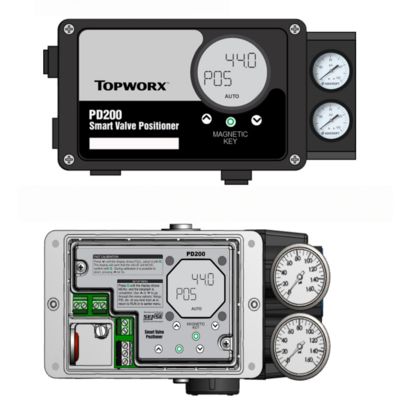

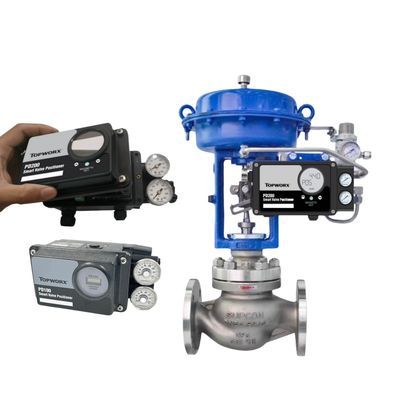

Original Emerson TopWorx PD100 PD200 Smart Valve Positioner Feedback Customized Pneumatic Control Valves

The TopWorx PD Series Smart Valve Positioner, including the PD100 and PD200 models, offers a compact and versatile solution for automated valve control across diverse industrial applications. Featuring non-contacting Hall-effect sensors and advanced HART communication (PD200), these positioners provide precise positioning, fast response, and low air consumption. The intuitive LCD interface and push-button or magnetic key controls simplify calibration and operation, even in challenging environments. Certified for ATEX, IECEx, and cULus, the PD Series is perfect for chemical, oil and gas, and pulp and paper industries, delivering smart integration and reliable performance.

• Compact and Lightweight: Streamlined design for easy installation in tight spaces.
• HART Integration (PD200): Enables real-time diagnostics and seamless DCS connectivity.
• Non-Contacting Sensors: Hall-effect technology ensures wear-free operation and durability.
• Intuitive LCD Display: Facilitates local setup and monitoring without cover removal.
• Fast Response Time: ≥0.3% of full scale for precise valve control.
• Low Air Consumption: 0.31 scfm at 60 psi for cost-effective operation.
• Universal Compatibility: Supports linear (12–200 mm) and rotary (0–120°) actuators.
• Rugged Enclosure: IP66/Type 4X for resistance to dust, water, and harsh conditions.
• Configurable Alarms (PD200): PNP alarms for comprehensive valve monitoring.
• Quick Auto-Calibration: Push-button or magnetic key for rapid commissioning.

The TopWorx PD Series Smart Valve Positioner excels in versatile valve automation:

• Petrochemical Industry: Precise control for valves in refining and chemical plants.
• Oil and Gas: Reliable valve positioning in pipelines and offshore platforms.
• Power Generation: Manages steam and gas valves in turbine systems.
• Pulp and Paper: Ensures accurate flow in chemical and slurry applications.
• Food and Beverage: Supports hygienic valve control in processing systems.

The PD100 offers 4-20 mA control, while the PD200 includes HART, configurable alarms, and magnetic key functionality.

It enables real-time diagnostics and integration with digital control systems for enhanced monitoring.

Yes, its lightweight and compact design fits easily in space-constrained environments.

It supports both linear (12–200 mm) and rotary (0–120°) actuators, single or double-acting.

It allows safe, cover-on adjustments in hazardous areas, enhancing operational safety.

For more information about the TopWorx PD Series Smart Valve Positioner, pricing, or to request a demo, contact our team:

• Email: edward.zhao@gongboshi.com
• Phone: +8615000725058
• Website: https://www.shgongboshi.com/
