Hytork Excel XL Pneumatic Actuator 5.6 Bar ISO 5211 Mount

The Hytork Excel (XL) series represents a robust and highly versatile line of double-acting and spring-return pneumatic rack-and-pinion actuators. Designed for the precise and reliable operation of quarter-turn valves—such as ball, butterfly, and plug valves—the Excel series is engineered to meet the demanding requirements of modern industrial applications. It is renowned for its durability, compact design, and exceptional performance across a wide spectrum of industries, including oil and gas, water and wastewater, power generation, chemical processing, and marine services. The XL series is built to provide a dependable solution for automation needs where safety, longevity, and minimal maintenance are critical.

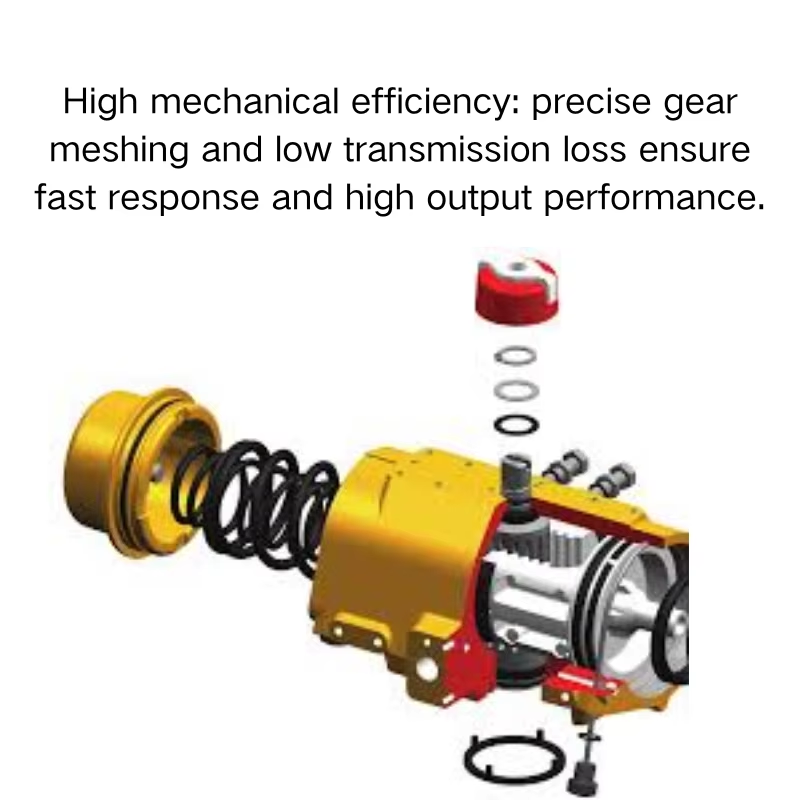

The core of the Excel series' success lies in its thoughtful engineering and high-quality construction. The actuator features a compact, lightweight yet incredibly strong body manufactured from high-grade, corrosion-resistant aluminum alloy. This material choice provides an excellent strength-to-weight ratio, ensuring the actuator can generate high output torques without unnecessary bulk, making it easier to install and integrate into existing systems. The internal mechanism employs a precision-machined dual piston and gear rack system. In double-acting models, air pressure is applied to both sides of the pistons, driving the racks which engage with a central pinion gear to produce the rotary output motion. For spring-return models, the air pressure moves the pistons to compress the springs, storing energy; upon air failure or a shutdown signal, the stored energy in the springs forcefully returns the actuator and valve to a predefined fail-safe position (either open or closed).

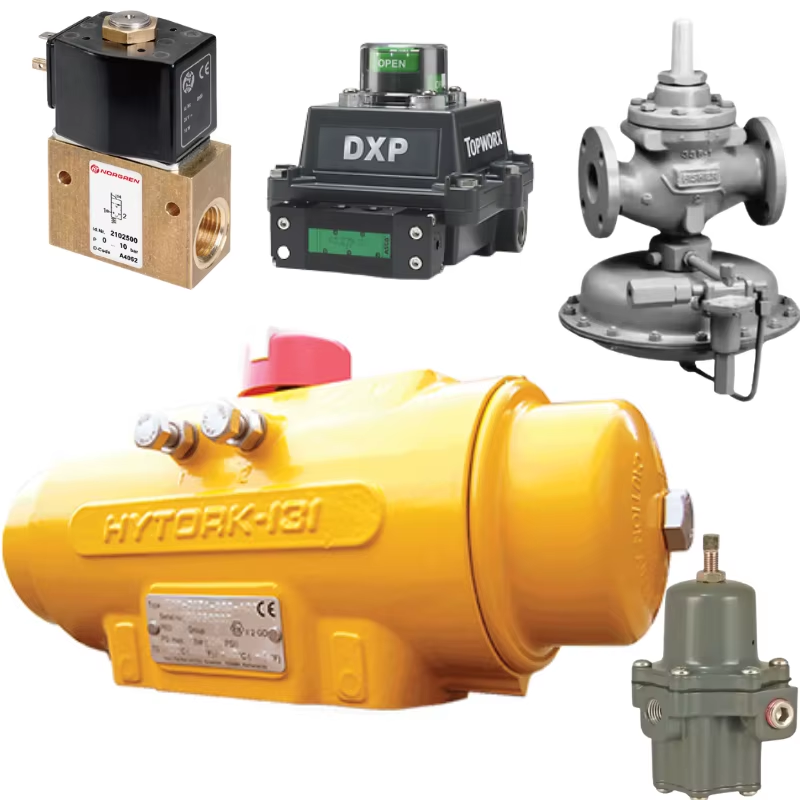

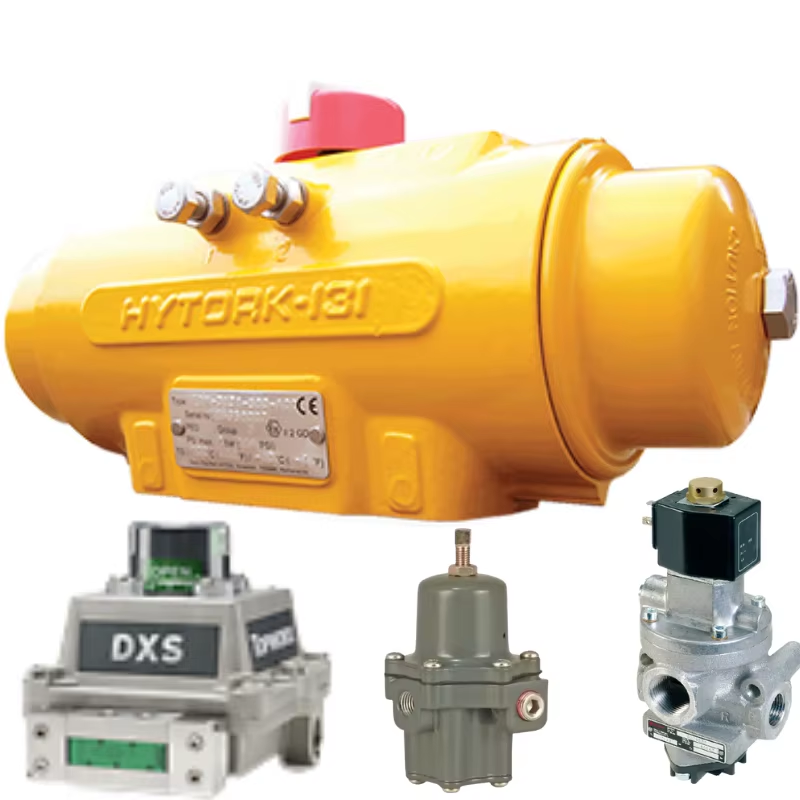

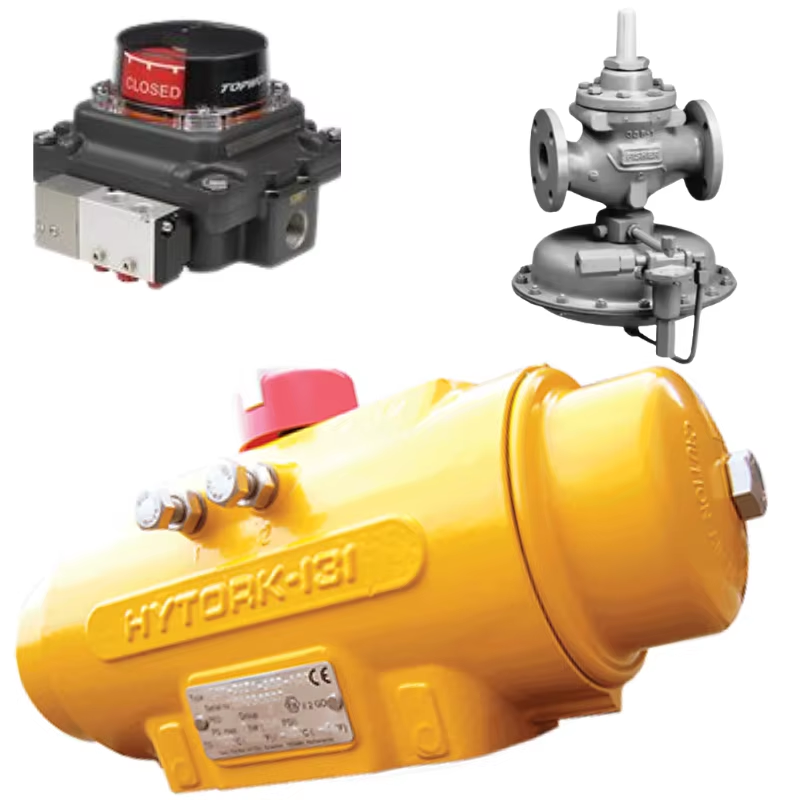

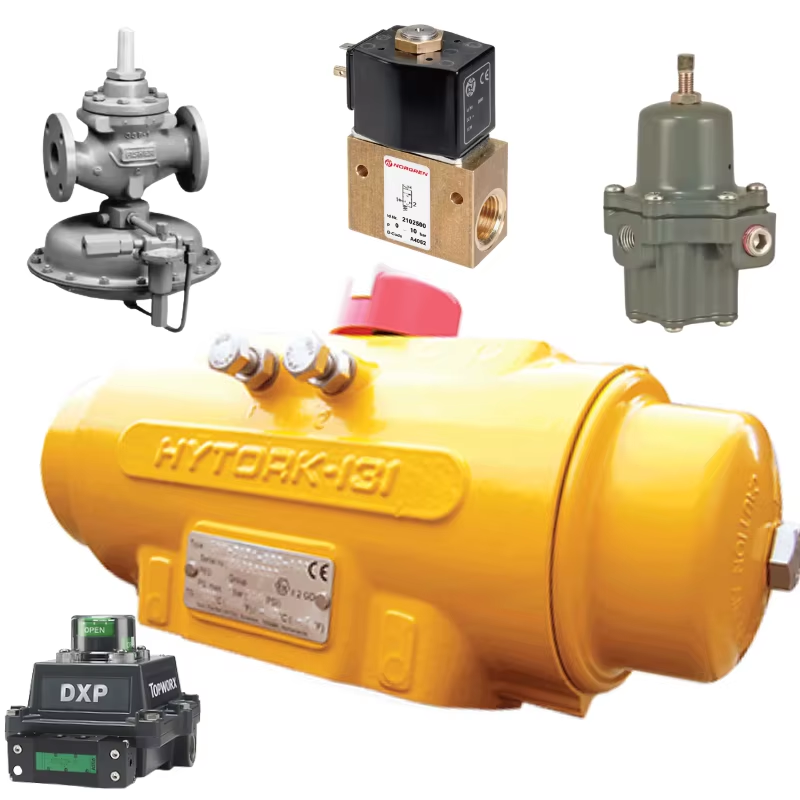

A significant advantage of the Excel series is its modularity and ease of customization. The actuator is designed to be a direct mount to a vast array of quarter-turn valves, complying with international mounting standards such as ISO 5211. This ensures straightforward installation and interchangeability. Users can configure the actuator with a multitude of optional accessories directly from the factory or in the field. These accessories include solenoid valves, limit switches, position transmitters (potentiometers or proximity sensors), manual overrides, and air filter regulators. This modularity allows for a complete, bespoke automation package to be assembled, meeting exact control and monitoring specifications without requiring adaptor plates or complex modifications.

The Hytork Excel series is built to perform in challenging environments. Standard models are typically rated to IP67 (IEC 60529) for ingress protection, meaning they are completely protected against dust and can withstand temporary immersion in water. This makes them suitable for outdoor installation and harsh, wash-down environments. For even more corrosive atmospheres, such as those found in offshore or chemical plants, Hytork offers special epoxy coatings and stainless steel hardware options.

The actuators are designed for operation with standard plant air supply, typically in the range of 4 to 8 bar (approximately 60 to 115 psi), though they can often tolerate higher maximum pressures. The combination of robust internal components and high-quality sealing provides excellent cycle life and low air consumption, contributing to operational efficiency and lower lifetime costs. The spring-return models are particularly valued in safety-critical applications where a defined safe state must be achieved upon loss of power, a key requirement in safety instrumented systems (SIS).

In summary, the Hytork Excel (XL) series actuator offers a compelling package of benefits:

• High Torque Output: Delivers strong, reliable torque for demanding valve operation.

• Compact and Lightweight: Aluminum construction allows for easy handling and installation.

• Durability and Corrosion Resistance: Engineered for long service life in tough conditions.

• Modular Flexibility: A wide range of accessories enables custom configuration for any application.

• Global Standards Compliance: Designed to meet international mounting and performance standards.

• Proven Safety and Reliability: Especially in spring-return models for fail-safe operation.

Ultimately, the Hytork Excel XL series stands as a benchmark for quality and value in the pneumatic actuator market, providing a dependable and efficient solution for automating quarter-turn valves across the globe.
