SIPOS Seven 7 Electric Valve Actuator for Chemical & Natural Gas

1
MOQ
US $3000.00 - 3500.00/ Unit
prezzo
SIPOS Seven 7 Electric Valve Actuator for Chemical & Natural Gas
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Torque Range: 10 Nm - 4000 Nm
Speed Range: Variable speed control from 0.5 rpm to 60 rpm (depending on model)
Control Type: ON/OFF, Modulating (continuous), Positioning
Ambient Temperature: -30°C to +70°C (standard); extended range available on request
Thrust: Up to 150 kN (with thrust unit)
Alimentatore: 3-Fase: 380-500 V AC, 50/60 Hz
Protection Class: IP67 / IP68 optional
Evidenziare:

SIPOS Seven 7 electric valve actuator

,

chemical gas valve actuator

,

natural gas electric control valve
Informazioni di base
Marca: SIPOS
Model Number: Seven
Documento: xiangjing valve&instrument ...t .pdf
Termini di pagamento e spedizione
Packaging Details: Wooden box + cardboard box + protection
Tempi di consegna: 90 giorni lavorativi
Payment Terms: T/T
Supply Ability: 500 units per year
Descrizione di prodotto

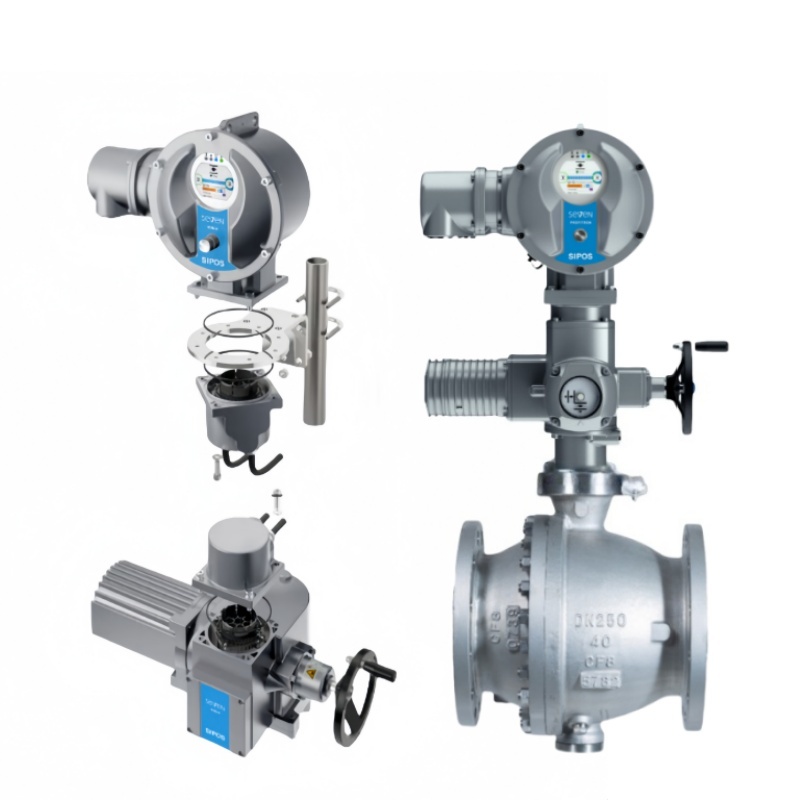

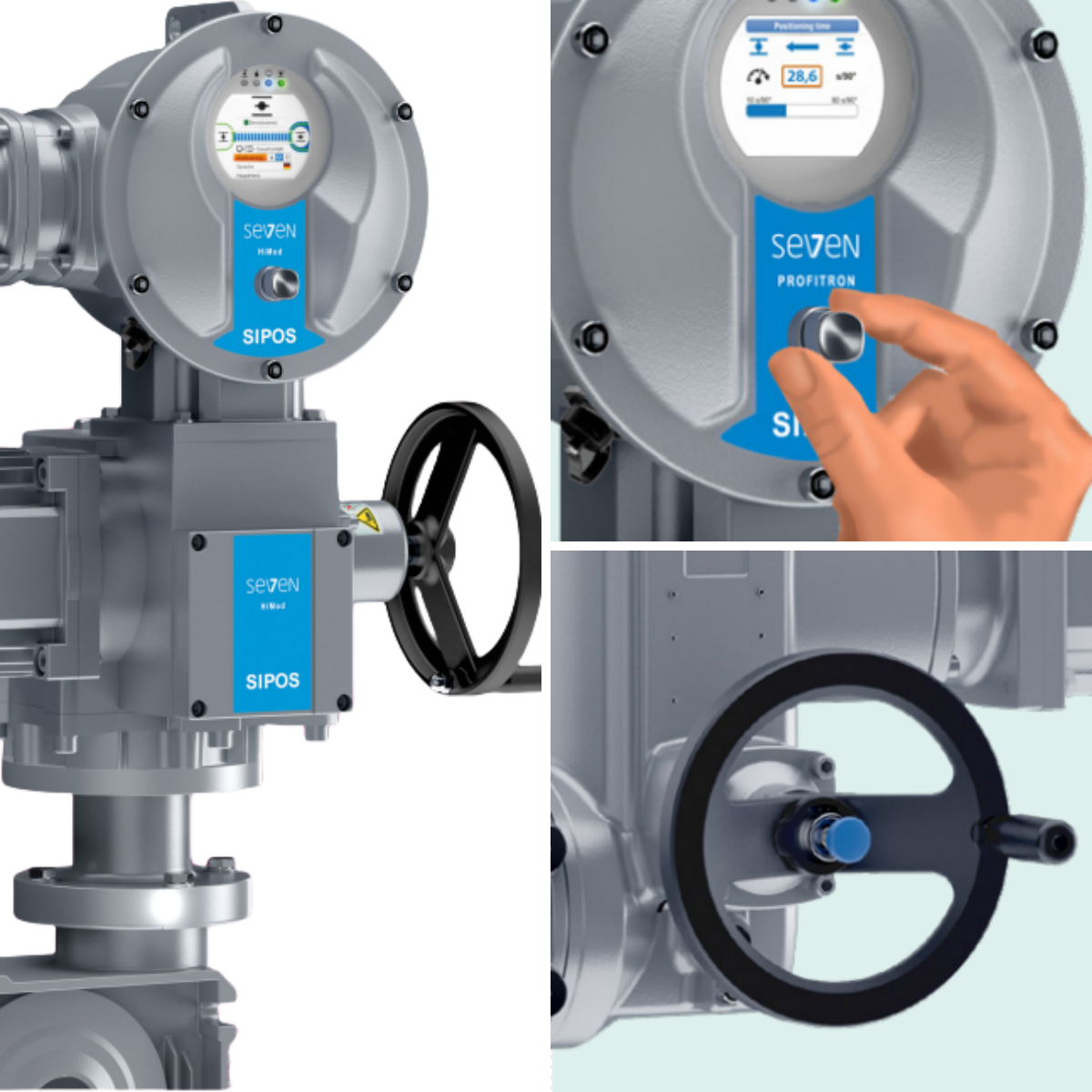

SIPOS Seven 7 Industrial Electric Valve Actuator for Chemical & Natural Gas Control
Product Overview

The SIPOS Seven 7 2R Electric Valve Actuator is a high-performance, explosion-proof solution designed for precise control of electric ball valves in chemical and natural gas applications. Engineered by China Chuanyi, it combines robust torque output with intelligent communication protocols to ensure safe and efficient operation in hazardous environments.

Technical Specifications
Attribute Value
Torque Range 10 Nm - 4000 Nm
Speed Range Variable speed control from 0.5 rpm to 60 rpm (depending on model)
Control Type ON/OFF, Modulating (continuous), Positioning
Ambient Temperature -30°C to +70°C (standard); extended range available on request
Thrust Up to 150 kN (with thrust unit)
Power Supply 3-phase: 380-500 V AC, 50/60 Hz
Protection Class IP67 / IP68 optional
Model SIPOS Seven 7 2R Series
Voltage 24V AC/DC, 110-240V AC
Explosion-Proof Grade ATEX II 2G Ex d IIC T6 Gb / IECEx
Control Signal 4-20 mA, 0-10V, Modbus RTU
Communication HART 7, Profibus DP, Foundation Fieldbus
Material Stainless Steel 316, Duplex Steel
Certification SIL 3, API 6D, ISO 9001
Key Features
  • Explosion-Proof & Hazardous Area Certified: Suitable for Zone 1/21 gas and dust environments
  • High Torque for Large Valves: Powers ball valves up to 24 inches in diameter
  • Smart Diagnostics: Real-time actuator health monitoring via HART/Profibus
  • Customizable Mounting: Factory-tailored integration with Chuanyi electric ball valves
  • Energy-Efficient Design: Low power consumption with solar-compatible options
Applications
  • Chemical Industry: Safe handling of corrosive fluids in reactors and storage tanks
  • Natural Gas Pipeline: Precise flow regulation in transmission and distribution systems
  • Petroleum Refining: Automated control of crude oil and refined product pipelines
  • Water Treatment: Sludge control and desalination plant automation
