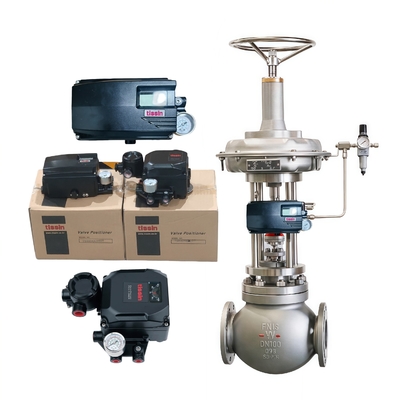

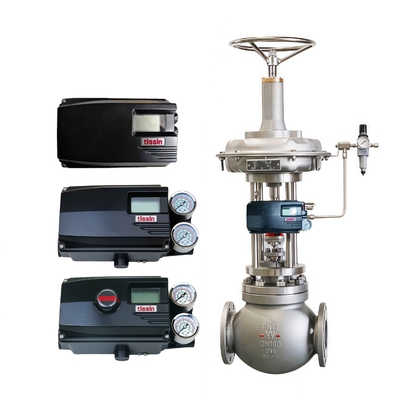

Process Control Valve Positioner Tissin TS600 Electro-pneumatic Valve Controller TS800 Digital Valve Positioner

1
MOQ
US $690.00 - 790.00/ Set
prezzo
Process Control Valve Positioner Tissin TS600 Electro-pneumatic Valve Controller TS800 Digital Valve Positioner
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Input current range: 4~20mA DC
Air source connection size: PT1/4, NPT1/4
Ingress Protection Rating: IP66
Pressure gauge connection size: PT1/8, NPT1/8
Normal operating temperature range: 30°C to 85°C (standard type),-40°C to 85°C (low temperature type)
Input pressure range: 0.14~0.7MPa
Evidenziare:

electro-pneumatic valve positioner

,

digital valve controller TS800

,

process control valve positioner
Informazioni di base
Marca: Tissin
Model Number: TS800
Documento: xiangjing valve&instrument ...t .pdf
Termini di pagamento e spedizione
Packaging Details: Carton + wooden box + protection
Delivery Time: 80 working days
Payment Terms: T/T
Supply Ability: 1000 units per year
Descrizione di prodotto


Tissin TS600 Electro-Pneumatic Controller & TS800 Digital Valve Positioner

Product Overview
The Tissin TS800 Digital Valve Positioner and TS600 Electro-Pneumatic Controller form a seamless automation solution for industrial valves. The TS800 provides precise digital control via 4-20mA signals, while the TS600 converts electrical signals to pneumatic output for actuator operation. Together, they ensure accurate throttling, isolation, and emergency response in critical processes.

Key Features
TS800 Digital Positioner

  • High Accuracy: ±0.3% of span for tight process control
  • Diagnostics: Loop integrity monitoring with LED status indicators
  • HART 7 Communication: Remote calibration and firmware updates

TS600 Electro-Pneumatic Controller

  • Conversion Efficiency: 4-20mA to 0.2-1 bar pneumatic signal conversion
  • Robust Design: IP66-rated housing with anti-corrosion coatings
  • Low Hysteresis: <1% for precise actuator control

Technical Specifications

Parameter TS800 Digital Positioner TS600 Electro-Pneumatic
Input Type 4-20mA DC (HART) 4-20mA DC
Output Range 0.4-9.5 bar 0.2-1 bar
Linearity ±0.3% full scale ±0.5% full scale
Power Supply 18-30V DC 24V DC
Protection IP66, NEMA 4X IP66, NEMA 4X
Temperature Range -30°C to 85°C -30°C to 70°C
Materials 316L stainless steel Aluminum alloy

Applications

  • Process Control: Reactor throttling, boiler feedwater control
  • Industries: Petrochemicals, pharmaceuticals, water treatment
  • Conditions: High-vibration areas, corrosive atmospheres, remote monitoring

Contact Us

We also stock related products:

  • Flowserve Logix 3200MD / 3400MD
  • Fisher FIELDVUE DVC6200
  • Masoneilan SVI II AP
  • NELES ND9000 / ND7000
