Applicazione: | trattamento | Caratteristiche: | Il robot di collaborazione sono |
---|---|---|---|
Circostanza: | Nuovo | Garanzia: | 1 anno, 1 anno |
Potere: | 350 | Tensione: | 220 |
Industrie applicabili: | Hotel, negozi dell'indumento, negozi di materiale da costruzione, fabbrica, officine riparazioni del | Peso (chilogrammi): | 78 |
Posizione della sala d'esposizione: | Il Regno Unito, Stati Uniti, Italia, Francia, Germania, India | Video uscente-ispezione: | Fornito |
Relazione sull'esperimento del macchinario: | Fornito | Tipo commercializzante: | Prodotto ordinario |
Garanzia delle componenti del centro: | 1 anno | Componenti del centro: | Cambio, motore |
Nome di prodotto: | braccio del cobot di 6 assi per il braccio robot di collaborazione del robot scherzoso di CNC del co | Numero dell'asse: | asse 6 |
Carico utile massimo: | 12 chilogrammi | Portata massima: | 1000 millimetri |
Ripetibilità di posa (iso 9283): | ±0.05mm | Materiale: | Lega di alluminio |
Valutazione di protezione: | IP54/IP66 | Posizione di montaggio: | Soffitto/parete del pavimento |
Tempo di vita: | 30000h | Porto: | Shanghai |

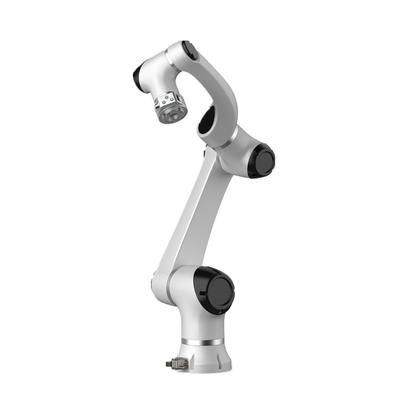

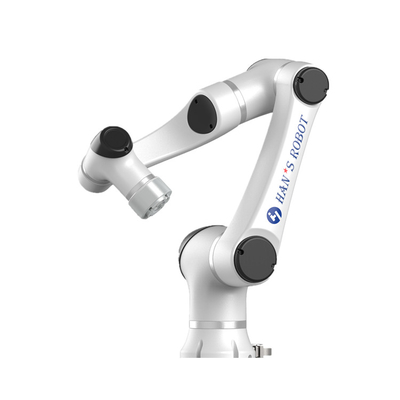

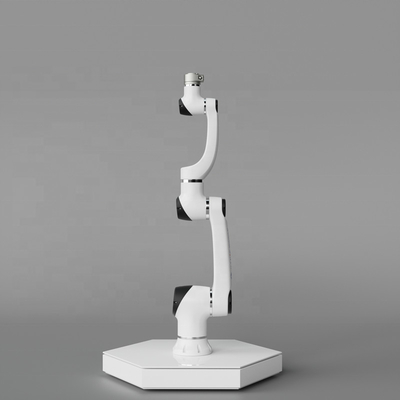

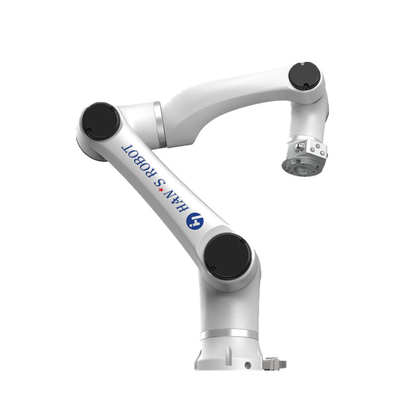

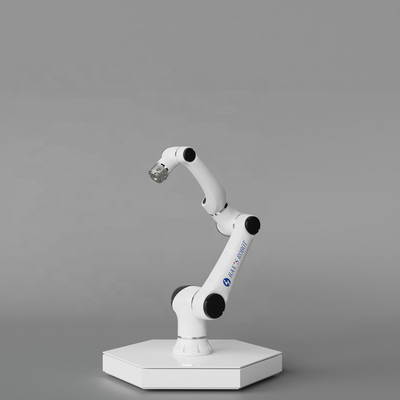

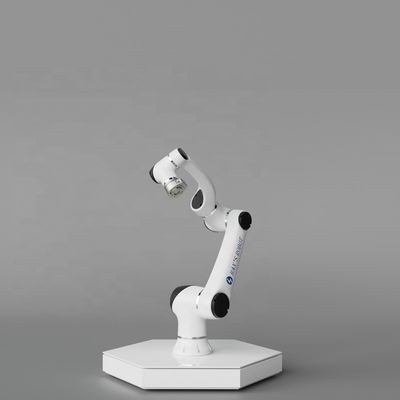

6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm
Main Specifications:
Maximum reach:1000 mm
Maximum payload:12 kg
Pose repeatability (ISO 9283):± 0.05 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:200W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
Product Name | 6 axis cobot arm 10 payload 12 Kg mainly for cobot cnc elfin robot collaborative robotic arm |
Application | 6 axis cobot arm ; cobot cnc; elfin robot collaborative robotic arm |
Model | Elfin 10 |
Robot Arm | |
Maximum reach | 1000 mm |
Maximum payload | 12 kg |
Pose repeatability (ISO 9283) | ± 0.05 mm |
Number of axes | 6 |
Mounting position | Floor/ Ceiling/Wall |
Lifetime | 30000h |
Weight | 17 kg |
Protection rating | IP54 |
Standard | CE, TUV,KSc |
Power consumption | 200W |
Material | Aluminum alloy |
Ambient temperature | 0-45°C |
Environment humidity | 20-85%(No condensation) |
Power supply | DC 48V |
Protocol | CAN bus |
A1 | ±135° |
A2 | ±135° |
A3 | ±135° |
A4 | ±135° |
A5 | ±135° |
A6 | ±135° |
Controller | |
Size | 536mm*445mm*491mm |
Weight | 20Kg |
Cable length | 5m |
Colour | Black |
Protocol | Ethernet,Modbus-RTU/TCP |
Power | 100-240V/AC,50-60HZ |
Protection rating | IP54 |
I/O port | 16 in/16 out |
Teach pendant | |
Size | 355mm*235mm*54mm |
Weight | 1.8Kg |
Screen | 12 inch Resistive LCD touch screen |
Cable length | 4m |
Protection rating | IP54 |
Colour | Orange+black |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
