Luogo di origine: | La CINA |
---|---|
Marca: | ABB |
Numero di modello: | IRB6700-200/2.6 |
Quantità di ordine minimo: | 1 insieme |
Prezzo: | US $33510 |
Imballaggi particolari: | UNA lucidatura robot dell'Assemblea del braccio del robot industriale di asse di asse ABB IRB6700 6 |
Tempi di consegna: | 30-60 giorni del lavoro |
Termini di pagamento: | L/C, T/T, Western Union |
Capacità di alimentazione: | 100 insiemi/mese |
NOME: | Lucidatura dell'Assemblea del braccio del robot industriale di asse di ABB IRB6700 6 che seleziona p | Applicazione: | Assemblea che lucida selezionando saldatura |
---|---|---|---|
Carico utile: | 200kg | Portata: | 2600mm |
Numero delle asce: | 6 | Materiale: | lega di alluminio |
Protezione: | Std: IP67. | Montaggio: | Pavimento, invertito |
Posizioni la ripetibilità: | 0.05mm | Regolatore: | IRC5 singolo regolatore montato del Governo IRC5 PMC pannello |

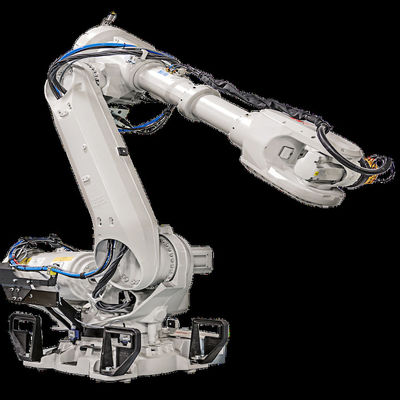

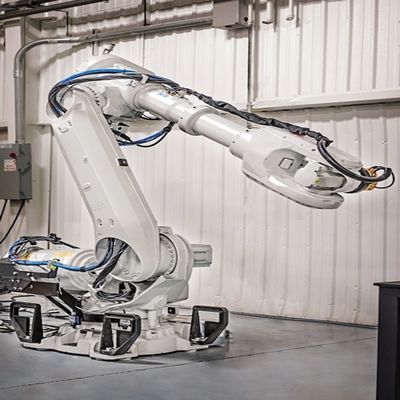

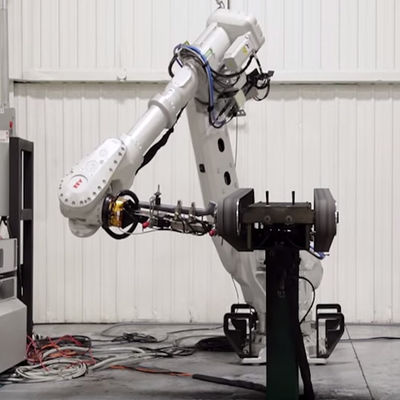

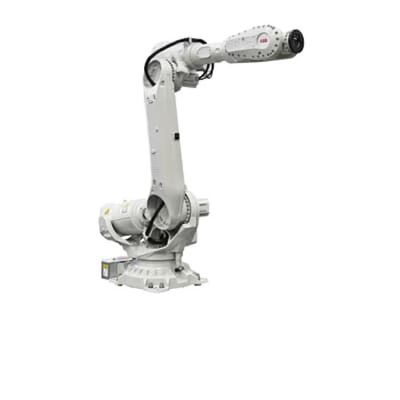

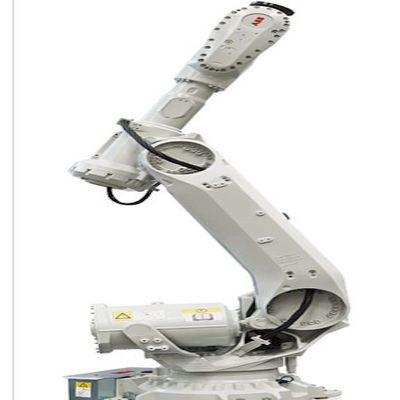

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding robot and Payload 200Kg Reach 2600mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
