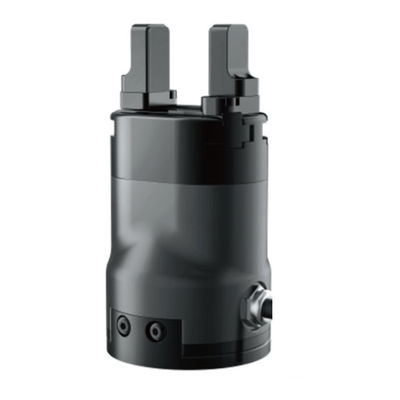

DH-ROBOTICS PGC-140 clamping device matched with UR cobot arm Chinese brand grip-pers
| Production Name | DH-ROBOTICS PGC-140 clamping device matched with UR cobot arm Chinese brand grip-pers |
| Model | PGC-50 robotic clamp device |
| Application | robotic clamp device |
| Stroke (adjustable) | 50 mm |
| Max payload | 2.5 kg |
| Ingress protection rating | IP 67 |
| Grip force (adjustable) | 40-140 N |
| Gripper mass | 1kg |
| Position resolution (fingertip) | ± 0.03mm |
| Nominal supply voltage | 24VDC±10% |
| Full-stroke closing time | 0.6 S |
| Communication protocol | TCP/IP, USB2.0, Modbus RTU(RS485), I/O, CAN2.0A,PROFINET,EtherCAT |
