Industrie applicabili: | Hotel, negozi dell'indumento, negozi di materiale da costruzione, officine riparazioni del macchinar | Posizione della sala d'esposizione: | nessuno |
---|---|---|---|
Video uscente-ispezione: | Fornito | Relazione sull'esperimento del macchinario: | Fornito |
Tipo commercializzante: | Nuovo prodotto 2020 | Garanzia delle componenti del centro: | 1 anno |
Componenti del centro: | SpA | Circostanza: | Nuovo |
Peso: | 250 chilogrammi, approssimativamente 250 chilogrammi | Potere: | 380V |
Garanzia: | 1 anno | Peso (chilogrammi): | 250 CHILOGRAMMI |
Portata massima: | 1813 millimetri | Carico utile massimo: | 23,9 chilogrammi |
Carico utile stimato: | 20 chilogrammi | Ripetibilità di posa (iso 9283): | ± 0,04 millimetri |
Numero delle asce: | 6 | Orma: | 430,5 millimetri x 370 millimetri |
Temperatura ambiente durante il funzionamento: | °C 5 45 a °C (278 K a 318 K) | Regolatore: | KR C4 |
Insegni al pendente: | SmartPAD di KUKA | Porto: | Shanghai |
item | value |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |

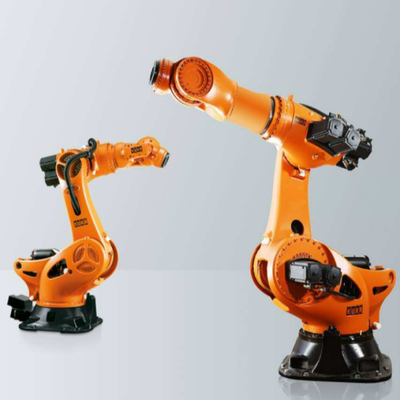

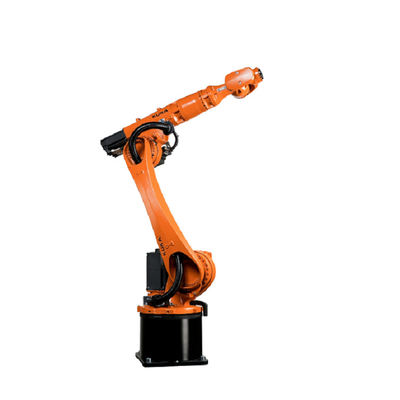

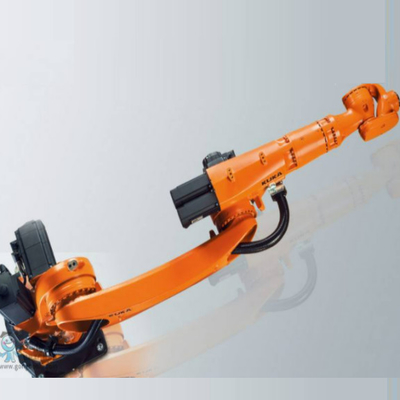

Name | Industrial Robot KR 20 R1810 With 6 Axis Robot Arm For Welding Rated Payload Of 20 kg Welding Machine |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Place of Origin | China |
Shanghai | |
Brand Name | KUKA |
Weight | 250kg |
Power | 380v |
Warranty | 1 Year |
Weight (KG) | 250kg |

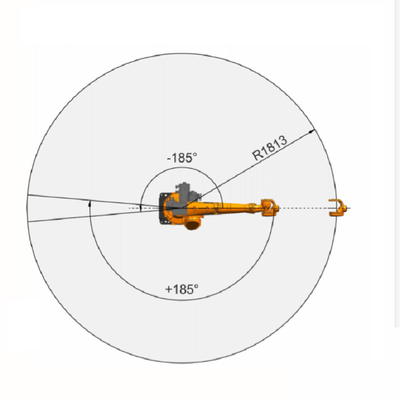

Maximum reach | 1813 mm |
Maximum payload | 23.9 kg |
Rated payload | 20 kg |
Pose repeatability (ISO 9283) | ± 0.04 mm |
Number of axes | 6 |
Footprint | 430.5 mm x 370 mm |
Weight | approx. 250 kg |
Ambient temperature during operation | 5 °C to 45 °C (278 K to 318 K) |
Controller | KR C4 |
Teach pendant | KUKA smartPAD |
Production Name | Welding Robot |
Power supply | 20 ~ 25V |
Protection rating | IP54 |
Weight | 1.25kg |
